SilentDoor Rw® 55S (Steel)

Model Reference: SD-SAD55

Experience unmatched sound control with SilentDoor Rw® 55, our exceptional tri-layer door designed to provide industry-leading acoustic performance. This cutting-edge door consists of two layers of robust 1.5mm thick steel, expertly sandwiching an inner core crafted from high mass acoustic mineral fibre, resulting in an impressive finished leaf thickness of 80mm. The inner core and inner steel reinforcements/structural rails are meticulously manufactured using state-of-the-art acoustically and thermally insulating materials, ensuring maximum soundproofing effectiveness.

SilentDoor Rw® 55 is the ultimate soundproofing solution, offering an impressive rating of 55dB and an 80mm thickness. Ideal for environments that demand exceptional acoustic performance, this door sets a new standard in sound control.

Suitable applications (recommendations are as follows)

SilentDoor Rw® 55 is ideally suited for Plant rooms. Industrial environments, Motor Bench testing, Recording studios.

Learn more on how much 5dB makes a difference, when choosing a Silentdoor Rw® HERE

• 80mm thick door leaf consisting of two steel sheets 1.5mm & 2.0mm.
• Internal steel high density sound block.

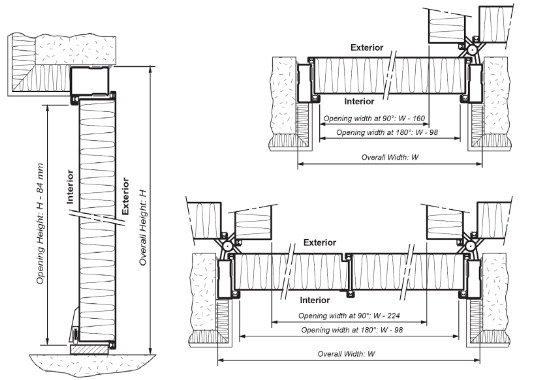

• Frame is 30 x 82 for the sides and 50 x 82 on the top.
• 80 x 15 mm flat plate threshold and surface mounted
• automatic drop seal,
• Door sets have 40 mm steel hinges with stainless steel ball bearings, Class 14 Standard EN 1935.
• Weather sealed joints on all four sides of the leaf and three sides of the frame.
• With 3 point lock Multilock dB or 3 point motorized MSL lock with access control.
• Sound reducing: Rw 58 (1; 3) dB for single leaf and Rw 57 (2; 6) dB for double leaf.
• Dimensional range: up to 2750 mm wide and 3100 mm wide
