SilentRoll® 31dB

Model Reference: SD-RSD31

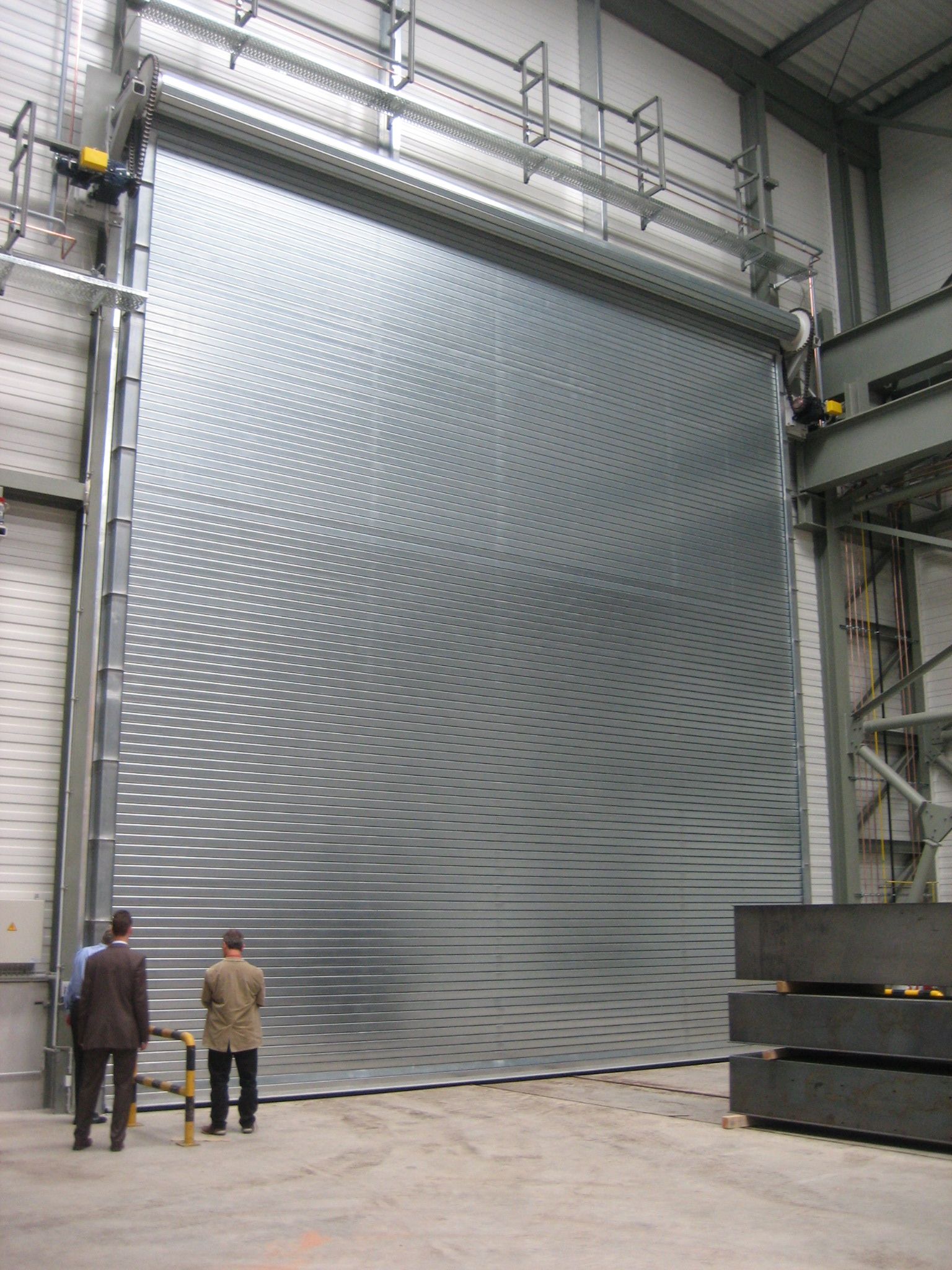

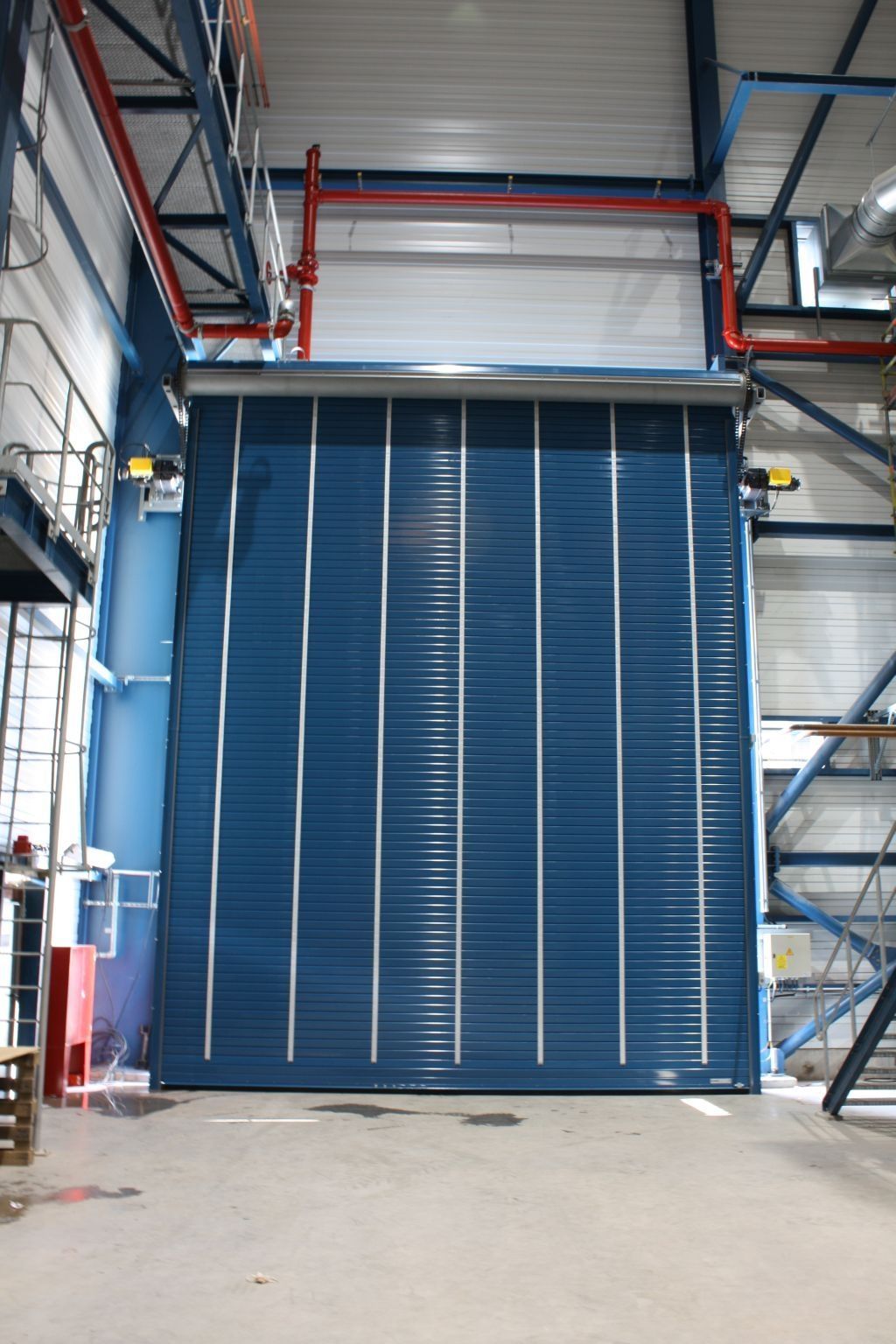

SilentRoll® 31 – Acoustic Roller Shutter (Rw 31dB)

The SilentRoll® 31 is a high-quality acoustic roller shutter, engineered to reduce noise transmission by up to 31dB (Rw). Designed for industrial, commercial, and high-traffic environments, it provides superior sound insulation, making it ideal for warehouses, workshops, recording studios, and commercial facilities.

Crafted for durability and reliability, this soundproof rolling shutter features a hot-galvanised steel construction with a mineral wool infill, ensuring enhanced acoustic performance while maintaining strength and security.

Key Benefits:

✔ Superior noise reduction for medium-noise environments.
✔ Durable steel design with integrated acoustic dampening.
✔ Smooth electric operation with manual override.
✔ Weather-sealed side guides for added protection.

The SilentRoll® 31 is the perfect sound insulation solution where noise control, durability, and security are essential. Contact us today to discuss

✅ Advanced Sound Insulation

• Reduces noise by up to 31dB (ISO 140-3 tested).
• Constructed from 1.25mm thick hot-galvanised steel with a clear protective coating for enhanced longevity.
• Mineral wool infill provides superior sound absorption and thermal insulation.

• Sealed side guides and lintel rubber lips for effective noise containment.

✅ Robust & Weather-Resistant Design

• Wind load class 2 (EN 12424) for resilience against moderate wind pressure.
• Side guides with multi-layer rubber sealing to minimise sound leakage and provide a secure fit.
• Prime-painted steel bearing brackets for long-term structural support.

✅ Reliable Motorised Operation

• Directly coupled electric drive (3/N/PE ~ 400 V 50 Hz) with an integrated safety arrestor (EN 12604 compliant).
• Emergency hand-crank for manual operation during power failures.
• Control unit (190x300x115mm) with integrated keypad for simple up-stop-down functionality.
• Dead man’s control system (self-hold function available for door heights over 2.5m).
• IP54-rated protection, ensuring reliability in industrial environments.


Installation & Maintenance Considerations

🚧 Building Acoustics Matter
The SilentRoll® 31 delivers its full acoustic performance only when installed in a suitable environment. To prevent sound leakage:

• The surrounding walls must provide at least the same sound insulation rating as the shutter.
• The best acoustic seal at the floor level is achieved through elastic decoupling, such as using an acoustic break in the flooring (avoiding continuous screeds or flooring materials).

⚡ Power Requirements

• Requires a 400V / 16A three-phase power supply with a CEE socket near the control unit.
• An optional lockable main switch is available instead of the CEE plug (upon request).

🛠 Surface Wear Disclaimer

• Due to the rolling mechanism, abrasion marks may appear on the shutter surface and within the guides over time.
• The extent of wear depends on profile type, weight, frequency of use, and environmental factors.
• These marks are a normal part of operation and do not indicate a defect.

The SilentRoll® 31 offers an ideal balance of sound insulation, durability, and operational safety, making it the perfect choice for noise-sensitive environments that require secure and efficient access solutions.
